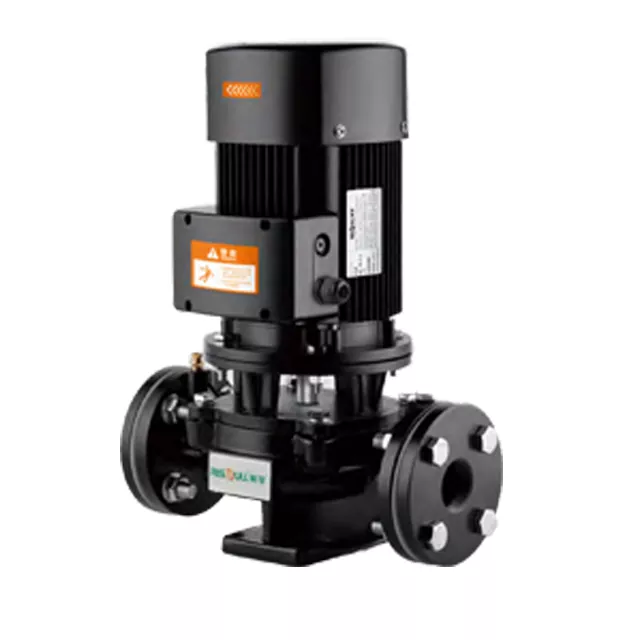

Industrial Hot Water Circulation Pump

Model:50GD

RISEFULL® is a leading China Industrial Hot Water Circulation Pump manufacturer, supplier and exporter. Adhering to the pursuit of perfect quality of products, so that our Industrial Hot Water Pump have been satisfied by many customers. Extreme design, quality raw materials, high performance and competitive price are what every customer wants, and that's also what we can offer you. Of course, also essential is our perfect after-sales service. If you are interested in our Industrial Hot Water Pump services, you can consult us now, we will reply to you in time!

Send Inquiry

Product Description Performance Data Installation Dimensions

The Industrial Hot Water Circulation Pump is a highly efficient and reliable solution for circulating hot water in various industrial applications. With its robust design, top-notch performance, and user-friendly features, this pump is perfect for a wide range of hot water circulation applications.

The following is an introduction of GD Series .It is the cast iron in line pump which is widely used in the central air conditioning of Building ,hot Water Circulation System of Building & Mansions & Mansions ,pipe circulation of plant and agricultural Irrigation..Hope to help you better understand Risefull industrial water pump . Welcome new and old customers to continue to cooperate with us to create a better future together

Product Details

Industrial Hot Water Circulation Pump

Working Condition

● Clean liquid without suspend solids ,non aggressive

● Continuous Service :S1

● Maximum Pressure:10 Bar

● Liquid Temperature:3℃~9℃

● Ambient Temperature:<40℃

● Insulation:F

● Protection:IP54

Model Definition

Exploded View OF Main Component

Industrial Hot Water Circulation Pump

List of Main Component ●Standard Configuration 〇 Optional Configuration
NO.	Component	Specification/Construction Characteristics
1	PUMP BODY	Cast Iron HT200, Electro-coating Finished (Salt Spray Resistant Test For 300+ Hours)
2	IMPELLER	Cast Iron HT200, Electro-coating Finished (Salt Spray Resistant Test For 300+ Hours)
3	Mechanical Seal	19BND Type（Furan Impregnation Graphite+SIC，Use Life 25,000+ Hours）
4	Bracket	Cast Iron HT200, Electrocoating Finished (Salt Spray Resistant Test For 300+ Hours)
5	Ball Bearings	● C&U 〇 TPI(Taiwan)
6	Motor Shaft	● Welding Shaft: Stainless Steel 304 (Pump Side)+Carbon Steel (Motor Side)
7	Terminal Box	Aluminum ADC12
8	Terminal Board	Flame Retarding PBT
9	Motor Housing	Aluminum ADC12
10	Fan	●Plastic PP 〇 Nylon PA6
11	Fan Cover	Tensile Steel Plate
12	Plug Cord	● 3 Core Testing Cable 〇 Customized Cable Plug
13	Motor	●IE2 Motor ◯ Customized 60 HZ Motor

Model	Impeller Diameter	Rated Capacity	Rated Head	Efficiency	RPM	Motor Power	NPSH	Inlet/out
Model	Impeller Diameter	Q/m³/h	H(m）	(%)	(r/min)	(kW)	(M)	Inlet/out
50GD16-11-1.1T	125	8/11/14.5	17/16/14	47/57/54	2900	1.1	2.3	50
50GD10-22.3-1.1T	100	15.6/22.3/29	11/10/8.4	65/67/68	2900	1.1	2.3	50
50GD20-12.5-1.5T	125	8.8/12.5/16.3	21.5/20/17.8	49/58/57	2900	1.5	2.3	50
50GD12.5-25-1.5T	100	17.5/25/32.5	13.7/12.5/10.5	67/69/69	2900	1.5	2.5	50
50GD28-11.7-2.2T	160	8.2/11.7/15.2	29/28/26	44/51/50	2900	2.2	2.3	50
50GD16-22.3-2.2T	125	15.6/22.3/29	17/16/13.6	58/66/65	2900	2.2	2.5	50
50GD32-12.5-3T	160	8.8/12.5/16.3	33/32/30	45/52/51	2900	3	2.3	50
50GD20-25-3T	125	17.5/25/32.5	21.5/20/18	60/68/67	2900	3	2.5	50
50GD24-21.6-3T	160	15/21.6/28	26/24/20.6	49/58/54	2900	3	2.5	50
50GD44-11.7-4T	200	8.3/11.7/15.3	45.8/44/42	37/45/45	2900	4	2.3	50
50GD32-25-4T	160	17.5/25/32.5	34.4/32/27.5	54/63/60	2900	4	2.5	50
50GD28-23.4-4T	160	16.4/23.4/30.4	30/28/24	54/62/59	2900	4	2.5	50
50GD50-12.5-5.5T	200	8.8/12.5/16.3	52/50/48	38/46/46	2900	5.5	2.3	50
50GD38-21.8-5.5T	200	15.2/21.8/28.3	40/38/34.5	45/55/55	2900	5.5	2.5	50
50GD70-11.6-7.5T	250	8.2/11.6/15.2	71.5/70/68	28/38/39	2900	7.5	2.3	50
50GD50-25-7.5T	200	17.5/25/32.5	52.7/50/45.5	49/58/59	2900	7.5	2.5	50
50GD44-23.5-7.5T	200	16.4/23.5/30.5	46.4/44/40	48/57/58	2900	7.5	2.5	50

Model	External Dimension(mm)						Packing Size			Weight (kg)
Model	L	H	h	V	W	DN	Long	Wide	High	Weight (kg)
50GD16-11-1.1T	329	415	100	120	70	50	55	36	41.5	35.4
50GD10-22.3-1.1T	344	425	95	160	100	50				40.8
50GD20-12.5-1.5T	329	430	100	120	70	50				38.7
50GD12.5-25-1.5T	344	440	95	160	100	50				41.4
50GD28-11.7-2.2T	354	465	100	130	80	50				44.4
50GD16-22.3-2.2T	379	510	105	160	100	50				46.8
50GD32-12.5-3T	354	505	100	130	80	50	63	43	46	48
50GD20-25-3T	379	480	100	160	100	50				55.8
50GD24-21.6-3T	394	510	110	160	100	50				59.5
50GD44-11.7-4T	374	530	100	130	80	50				50
50GD32-25-4T	394	540	110	160	100	50				63.5
50GD28-23.4-4T	394	540	110	160	100	50				51.3
50GD50-12.5-5.5T	374	580	100	130	80	50	71	52	49	86.2
50GD38-21.8-5.5T	424	595	105	160	100	50				87
50GD70-11.6-7.5T	474	595	105	160	100	50				91.4
50GD50-25-7.5T	424	595	105	160	100	50				91.8
50GD44-23.5-7.5T	424	595	105	160	100	50				91.3
