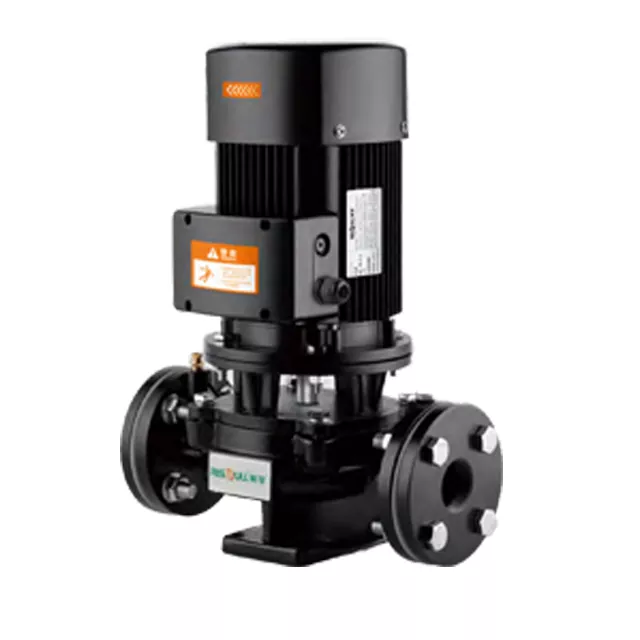

Cooling Circulation Pump

Model:40GD

RISEFULL® is a professional China Cooling Circulation Pump manufacturer and supplier, if you are looking for the Dosing Pump For Chemical , consult us now!

Send Inquiry

Product Description Performance Data Installation Dimensions

At the heart of cooling syestem ,our Cooling Circulation Pump is a high-quality motor powered that delivers reliable and consistent operation, ensuring that your cooling needs are met with minimal fuss. The pump is designed to be incredibly easy to install, with no complicated wiring or installation process required. Simply plug it in and go!

One of the key features of our Cooling Circulation Pump is its energy efficiency. Built with the latest technology, the pump uses minimal power while still delivering impressive cooling performance. This means that you won't have to worry about running up high energy bills while keeping your home or workplace cool.

The following is an introduction of GD Series .It is the cast iron in line pump which is widely used in the central air conditioning of Building ,hot Water Circulation System of Building & Mansions & Mansions ,pipe circulation of plant and agricultural Irrigation..Hope to help you better understand Risefull industrial water pump . Welcome new and old customers to continue to cooperate with us to create a better future together.

Product Details

Cooling Circulation Pump

Working Condition

● Clean liquid without suspend solids ,non aggressive

● Continuous Service :S1

● Maximum Pressure:10 Bar

● Liquid Temperature:3℃~90℃

● Ambient Temperature:<40℃

● Insulation:F

● Protection:IP54

Model Definition

Cooling Circulation Pump

Exploded View OF Main Component

Cooling Circulation Pump

List of Main Component ●Standard Configuration 〇 Optional Configuration
NO.	Component	Specification/Construction Characteristics
1	PUMP BODY	Cast Iron HT200, Electro-coating Finished (Salt Spray Resistant Test For 300+ Hours)
2	IMPELLER	Cast Iron HT200, Electro-coating Finished (Salt Spray Resistant Test For 300+ Hours)
3	Mechanical Seal	19BND Type（Furan Impregnation Graphite+SIC，Use Life 25,000+ Hours）
4	Bracket	Cast Iron HT200, Electrocoating Finished (Salt Spray Resistant Test For 300+ Hours)
5	Ball Bearings	● C&U 〇 TPI(Taiwan)
6	Motor Shaft	● Welding Shaft: Stainless Steel 304 (Pump Side)+Carbon Steel (Motor Side)
7	Terminal Box	Aluminum ADC12
8	Terminal Board	Flame Retarding PBT
9	Motor Housing	Aluminum ADC12
10	Fan	●Plastic PP 〇 Nylon PA6
11	Fan Cover	Tensile Steel Plate
12	Plug Cord	● 3 Core Testing Cable 〇 Customized Cable Plug
13	Motor	●IE2 Motor ◯ Customized 60 HZ Motor

Model	Impeller Diameter	Rated Capacity	Rated Head	Efficiency	RPM	Motor Power	NPSH	Inlet/out
Model	Impeller Diameter	Q/m³/h	H(m）	(%)	(r/min)	(kW)	(M)	Inlet/out
40GD16-11-1.1T	125	8/11/14.5	17/16/14	47/57/54	2900	1.1	2.3	40
40GD20-6.3-1.1T	125	4.4/6.3/8.3	21/20/18	41/46/43	2900	1.1	2.3	40
40GD20-12.6-1.5T	125	8.8/12.6/16.3	21.2/20/17.8	49/58/57	2900	1.5	2.3	40
40GD28-5.9-1.5T	160	4.1/5.9/7.8	29/28/26.3	34/39/39	2900	1.5	2.3	40
40GD28-11.7-2.2T	160	8.2/11.7/15.2	29/28/26	44/41/50	2900	2.2	2.3	40
40GD36-5.3-2.2T	200	3.7/5.3/7	38/36/34.5	23/29/27	2900	2.2	2.3	40
40GD32-12.5-3T	160	8.8/12.5/16.3	33/32/30	45/52/51	2900	3	2.3	40
40GD36-10.6-3T	200	7.5/10.6/13.8	37/36/34	35/44/42	2900	3	2.3	40
40GD44-5.9-3T	200	4.1/5.9/7.8	45/44/42	26/31/30	2900	3	2.3	40
40GD44-11.7-4T	200	8.3/11.7/15.3	45/44/42	37/45/45	2900	4	2.3	40
40GD50-6.3-4T	200	4.4/6.3/8.3	51/50/48	26/33/32	2900	4	2.3	40
40GD60-5.5-4T	250	3.8/5.5/7	61.5/60/56	23/27/26	2900	4	2.3	40
40GD50-12.5-5.5T	200	8.8/12.5/16.3	51.2/50/48	38/46/46	2900	5.5	2.3	40
40GD70-5.9-5.5T	250	4.1/5.9/7.8	72/70/65	24/28/27	2900	5.5	2.3	40
40GD70-11.6-7.5T	250	8.2/11.6/15.2	71/70/68	28/38/39	2900	7.5	2.3	40
40GD80-6.3-7.5T	250	4.4/6.3/8.3	82/80/74	24/28/28	2900	7.5	2.3	40

Model	External Dimension(mm)						Packing Size			Weight (kg)
Model	L	H	h	V	W	DN	Long	Wide	High	Weight (kg)
40GD16-11-1.1T	339	415	95	120	70	40	55	36	41.5	34.8
40GD20-6.3-1.1T	314	410	90	120	70	40				34.5
40GD20-12.6-1.5T	339	430	95	120	70	40				39.5
40GD28-5.9-1.5T	352	420	85	120	70	40				38.6
40GD28-11.7-2.2T	352	445	85	120	70	40				41.2
40GD36-5.3-2.2T	372	470	94	130	80	40				40.4
40GD32-12.5-3T	359	505	100	130	80	40	63	43	46	54.7
40GD36-10.6-3T	394	500	100	130	80	40				55.2
40GD44-5.9-3T	372	495	94	130	80	40				54.6
40GD44-11.7-4T	394	530	100	130	80	40				62
40GD50-6.3-4T	372	525	94	130	80	40				62.8
40GD60-5.5-4T	439	535	100	130	80	40				64
40GD50-12.5-5.5T	394	580	100	130	80	40	71	52	49	85
40GD70-5.9-5.5T	439	580	100	130	80	40				85.6
40GD70-11.6-7.5T	474	585	100	160	100	40				90.2
40GD80-6.3-7.5T	439	580	100	130	80	40				91.4
