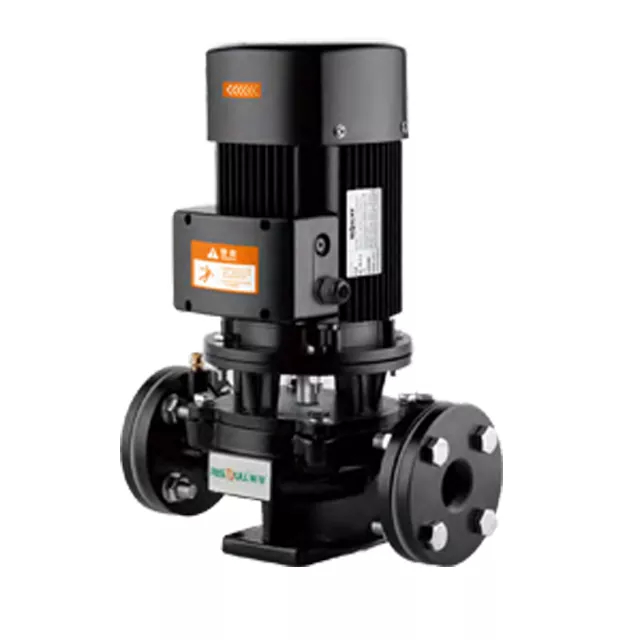

High Pressure Water Pump For Circulation

Model:65GD

RISEFULL® is a professional leader China High Pressure Water Pump For Circulation manufacturer with reasonable price. Welcome to contact us.

Send Inquiry

Product Description Performance Data Installation Dimensions

Whether you need to circulate water in a large industrial space or simply want to keep your pool or garden well-hydrated, this pump is up to the task. It's easy to install and maintain, making it a hassle-free solution for anyone looking to improve their water circulation.

One of the key benefits of our High Pressure Water Pump For Circulation is its powerful motor. With a motor that generates enough horsepower to move large volumes of water, this pump is perfect for applications that require a lot of circulating power.

The following is an introduction of GD Series .It is the cast iron in line pump which is widely used in the central air conditioning of Building ,hot Water Circulation System of Building & Mansions & Mansions ,pipe circulation of plant and agricultural Irrigation..Hope to help you better understand Risefull industrial water pump . Welcome new and old customers to continue to cooperate with us to create a better future together.

Product Details

High Pressure Water Pump For Circulation

Working Condition

● Clean liquid without suspend solids ,non aggressive

● Continuous Service :S1

● Maximum Pressure:10 Bar

● Liquid Temperature:3℃~9℃

● Ambient Temperature:<40℃

● Insulation:F

● Protection:IP54

Model Definition

High Pressure Water Pump For Circulation

Exploded View OF Main Component

High Pressure Water Pump For Circulation

List of Main Component ●Standard Configuration 〇 Optional Configuration
NO.	Component	Specification/Construction Characteristics
1	PUMP BODY	Cast Iron HT200, Electro-coating Finished (Salt Spray Resistant Test For 300+ Hours)
2	IMPELLER	Cast Iron HT200, Electro-coating Finished (Salt Spray Resistant Test For 300+ Hours)
3	Mechanical Seal	19BND Type（Furan Impregnation Graphite+SIC，Use Life 25,000+ Hours）
4	Bracket	Cast Iron HT200, Electrocoating Finished (Salt Spray Resistant Test For 300+ Hours)
5	Ball Bearings	● C&U 〇 TPI(Taiwan)
6	Motor Shaft	● Welding Shaft: Stainless Steel 304 (Pump Side)+Carbon Steel (Motor Side)
7	Terminal Box	Aluminum ADC12
8	Terminal Board	Flame Retarding PBT
9	Motor Housing	Aluminum ADC12
10	Fan	●Plastic PP 〇 Nylon PA6
11	Fan Cover	Tensile Steel Plate
12	Plug Cord	● 3 Core Testing Cable 〇 Customized Cable Plug
13	Motor	●IE2 Motor ◯ Customized 60 HZ Motor

Model	Impeller Diameter	Rated Capacity	Rated Head	Efficiency	RPM	Motor Power	NPSH	Inlet/out
Model	Impeller Diameter	Q/m³/h	H(m）	(%)	(r/min)	(kW)	(M)	Inlet/out
65GD10-22.3-1.1T	100	15.6/22.3/29	11/10/8.4	65/67/68	2900	1.1	2.5	65
65GD12.5-25-1.5T	100	17.5/25/32.5	13.7/12.5/10.5	67/69/69	2900	1.5	2.5	65
65GD10-44.7-2.2T	100	32.3/44.7/58	11/10/8	66/72/69	2900	2.2	3	65
65GD16-22.3-2.2T	125	15.6/22.3/29	17/16/14.4	58/66/65	2900	2.2	2.5	65
65GD12.5-50-3T	100	35/50/65	13.8/12.5/10	67/73/70	2900	3	3	65
65GD20-25-3T	125	17.5/25/32.5	21.5/20/18	60/68/67	2900	3	2.5	65
65GD24-21.6-3T	160	15/21.6/28	26/24/20.6	49/58/54	2900	3	2.5	65
65GD16-45-4T	125	31.3/45/58	17.5/16/13.6	66/71/69	2900	4	3	65
65GD32-25-4T	160	17.5/25/32.5	34.4/32/27.5	54/63/60	2900	4	2.5	65
65GD28-23.4-4T	160	16.4/23.4/30.4	30/28/24	54/63/59	2900	4	2.5	65
65GD20-50-5.5T	125	35/50/65	22/20/17	67/72.5/70	2900	5.5	3	65
65GD38-21.8-5.5T	200	15.2/21.8/28.3	40/38/34.5	45/55/55	2900	5.5	2.5	65
65GD32-50-7.5T	160	35/50/65	35/32/28	63/71/70	2900	7.5	3	65
65GD38-43.5-7.5T	200	30.5/43.5/56.6	40.6/38/33.4	52/65/65	2900	7.5	3	65
65GD50-25-7.5T	200	17.5/25/32.5	52.7/50/45.5	49/58/59	2900	7.5	2.5	65
65GD44-23.5-7.5T	200	16.4/23.5/30.5	46.4/44/40	48/57/58	2900	7.5	2.5	65
65GD44-47-11T	200	32.8/47/61	47/44/40	54/66/67	2900	11	3	65
65GD70-23.4-11T	250	16.4/23.4/30.5	17.5/70/67	39/50/52	2900	11	2.5	65
65GD60-21.6-11T	250	15/21.6/28	61/60/57.4	38/49/54	2900	11	2.5	65
65GD80-25-15T	250	17.5/25/32.5	82/80/76.5	39/50/52	2900	15	2.5	65
65GD50-50-15T	200	35/50/65	53.5/50/46	55/67/68	2900	15	3	65
65GD60-43.3-15T	250	30/43.3/56	62/60/54	50/58/58	2900	15	3	65
65GD85-20.6-15T	315	14.4/20.6/26.8	86/85/83	28/38/40	2900	15	2.5	65

Model	External Dimension(mm)						Packing Size			Weight (kg)
Model	L	H	h	V	W	DN	Long	Wide	High	Weight (kg)
65GD10-22.3-1.1T	359	455	95	160	100	65	55	36	41.5	42
65GD12.5-25-1.5T	359	495	95	160	100	65				44.3
65GD10-44.7-2.2T	434	495	130	160	100	65				54.5
65GD16-22.3-2.2T	369	480	102	160	100	65				47.6
65GD12.5-50-3T	434	535	130	160	100	65	63	43	46	48
65GD20-25-3T	369	480	102	160	100	65				56.8
65GD24-21.6-3T	399	510	105	160	100	65				66
65GD16-45-4T	434	600	120	160	100	65				65.3
65GD32-25-4T	394	570	105	160	100	65				63.3
65GD28-23.4-4T	399	540	105	160	100	65				66.8
65GD20-50-5.5T	434	600	120	160	100	65	71	52	49	87
65GD38-21.8-5.5T	429	595	105	160	100	65				87.6
65GD32-50-7.5T	439	595	120	160	100	65				91.6
65GD38-43.5-7.5T	489	600	135	160	100	65				91.8
65GD50-25-7.5T	429	595	105	160	100	65				91.5
65GD44-23.5-7.5T	429	595	105	160	100	65				91.5
65GD44-47-11T	489	715	135	160	100	65	83	63	67	166.2
65GD70-23.4-11T	509	695	120	180	120	65				165.5
65GD60-21.6-11T	509	695	120	180	120	65				165.8
65GD80-25-15T	519	695	120	180	120	65				176
65GD50-50-15T	489	715	135	160	100	65				176
65GD60-43.3-15T	519	705	130	180	120	65				176
65GD85-20.6-15T	584	705	130	180	120	65				176
