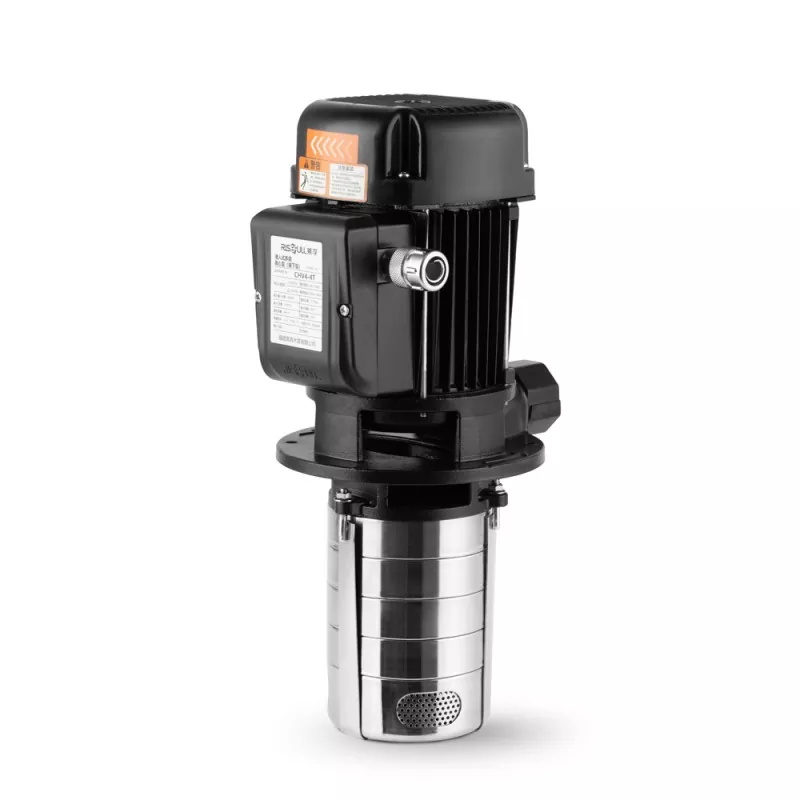

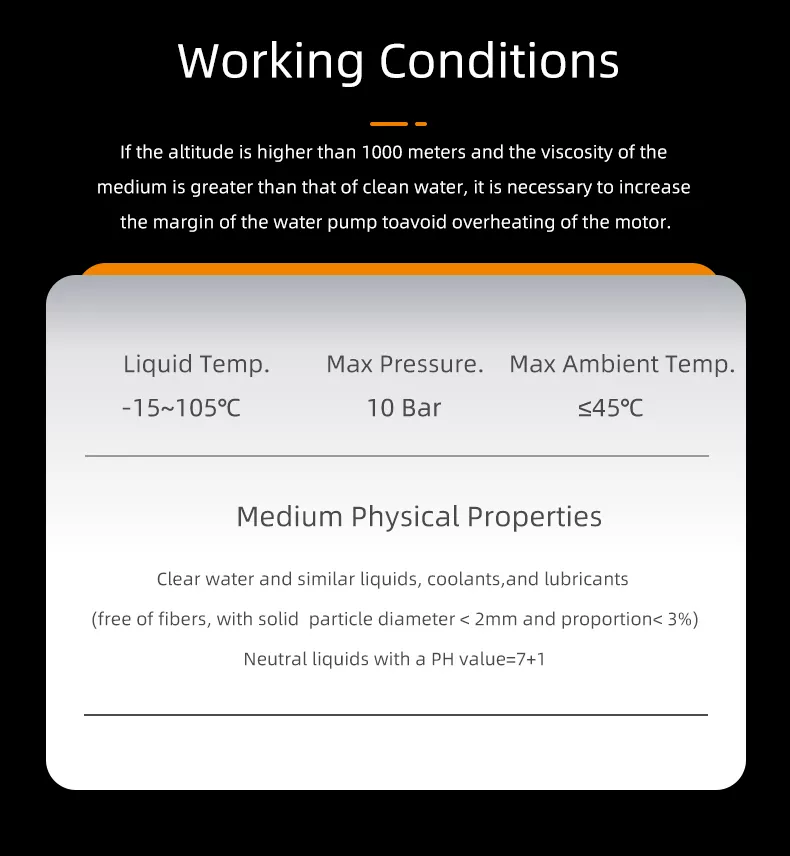

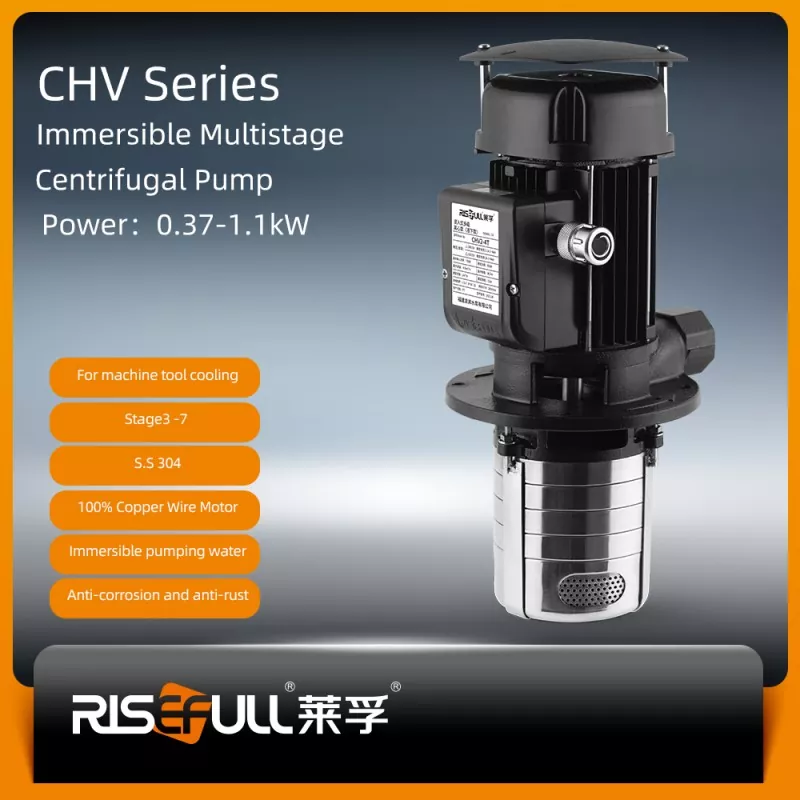

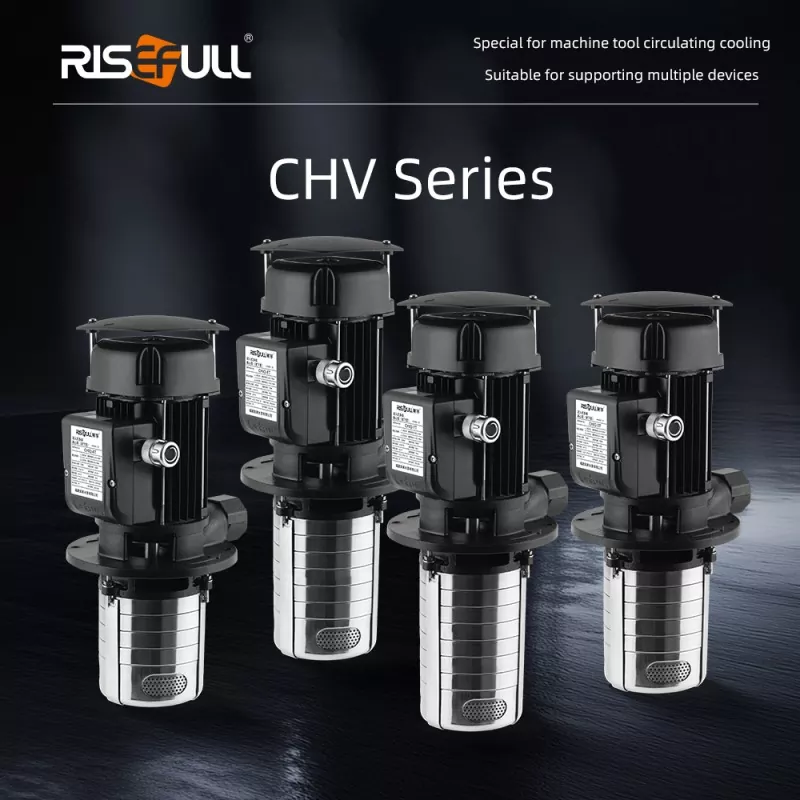

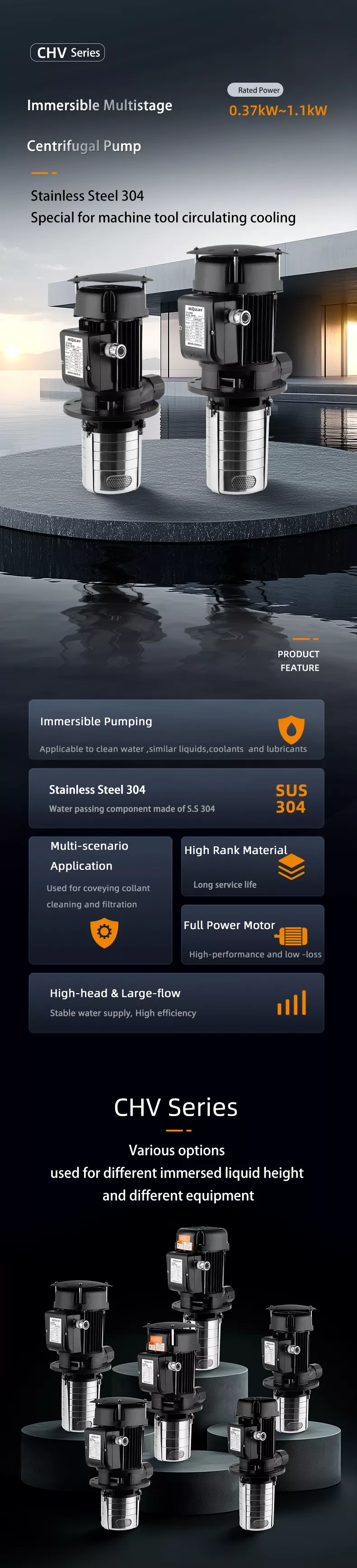

The following is an introduction of CHV Series The CHV immersible multistage centrifugal pump,especially designed for pumping of cooling lubricants for machine tools , and to be mounted on top of tanks with the pump stack immerged in the pumped liquid. STAIRS SBK pumps are available with various pump sizes and various numbers of stages to provide the flow, the pressure and the length required.
|
Product Name: |
Vertical Multistage Centrifugal Pump |
|
Power |
0.55kW~1.1kW |
|
Max Flow |
7m³/h |
|
Max Head |
28M~65M |
|
Inlet/outlet |
1”X1” |
|

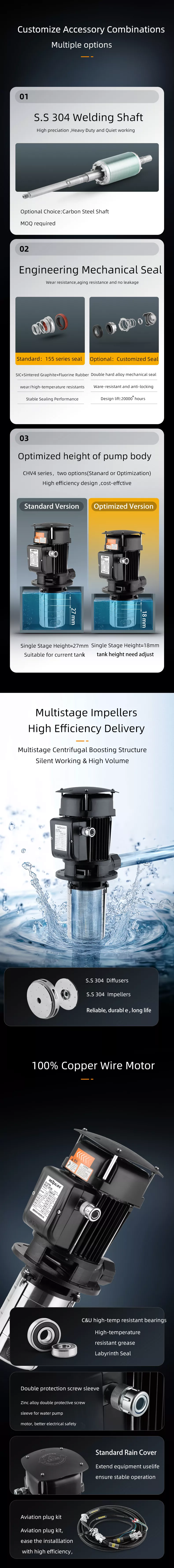

Pump Body |
Stainless Steel 304 |
|
Diffuser |
Stainless Steel 304 |
|
Bracket Plate |
Cast Iron with Elector-coating |
|
Shaft |
S.S Shaft |
|
Impeller |
Stainless Steel 304 Impeller |
|

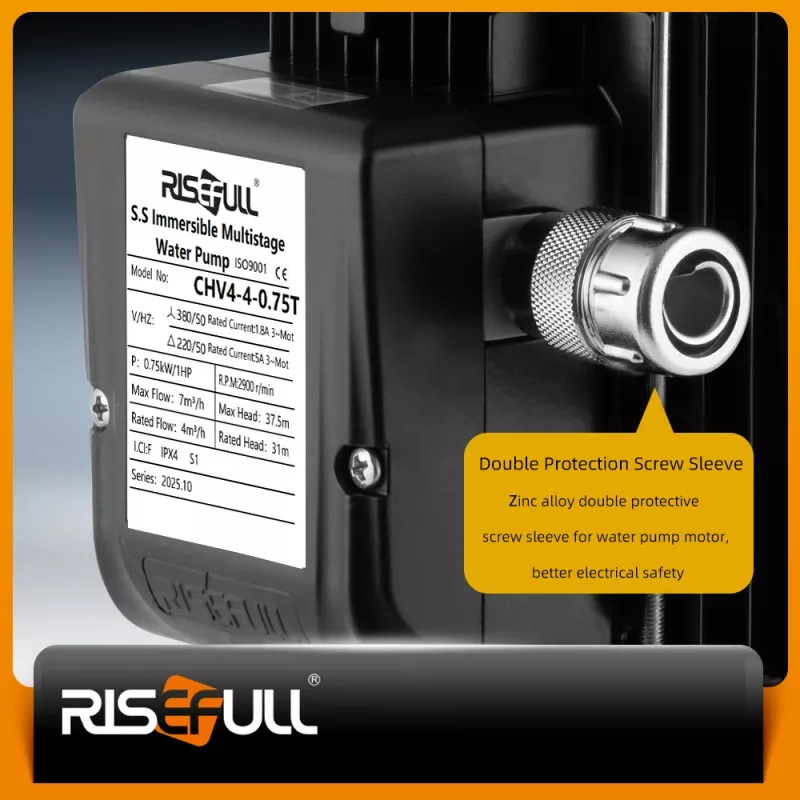

Motor |
Copper wire |
|
Color |
Powder Color Coating |
|
MOQ: |
10pcs |
|
Sample Time: |
Within 7 days |
|
Production Time: |
35-40 days after order confirmation |
|
Certificate |
CE |
|
Model |
Power |
Q m³/h |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
||||||
|
kW |
HP |
||||||||||||||
|
CHV4-3 |
0.55 |
0.75 |
H (m)
|
28 |
27 |
26 |
23.5 |
20.5 |
17 |
13 |
|||||
|
CHV4-4 |
0.75 |
1 |
37.5 |
36 |
34 |
31 |
27 |
23 |
19 |
||||||
|
CHV4-5 |
1.1 |
1.5 |
47 |
45 |
43 |
40 |
34 |
31 |
23 |
||||||
|
CHV4-3E |
0.55 |
0.75 |
27 |
25 |
22.5 |
21.5 |
16 |
10 |
|
||||||
|
CHV4-4E |
0.75 |
1 |
37 |
35 |
32 |
29 |
24 |
15 |
|
||||||
|
CHV4-5E |
0.9 |
1.2 |
46 |
43 |
40 |
35 |
28 |
19 |
|
||||||
|
CHV4-6E |
1 |
1.4 |
55.5 |
52 |
48 |
43 |
35 |
23 |
|
||||||
|
CHV4-7E |
1.1 |
1.5 |
65 |
61 |
56 |
51 |
42 |
27 |
|
||||||
|

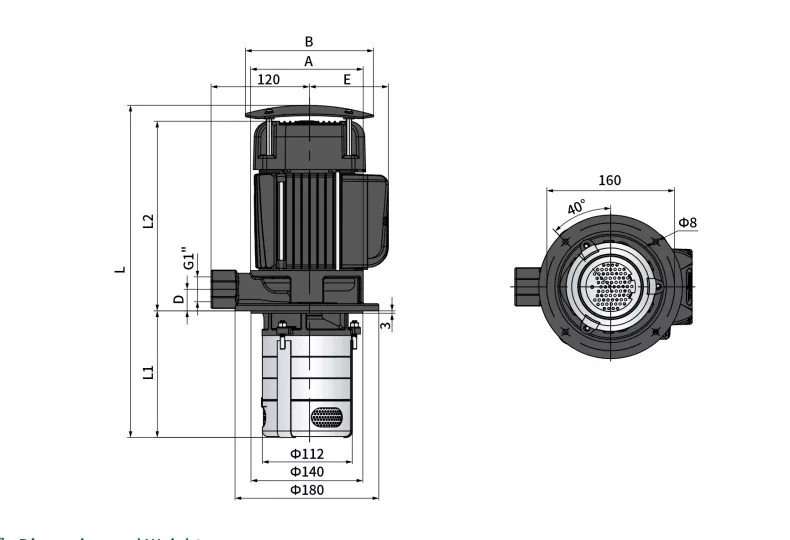

Motor |
Model |
Dimension(mm) |
Weight (kg) |
||||||
|
L |
L1 |
L2 |
A |
B |
D |
E |
|||
|
Three-phase Single-phase |
CHV4-3 |
411 |
159 |
228 |
120 |
136 |
25.5 |
88 |
13 |
|
CHV4-4 |
443 |
186 |
238 |
141 |
158 |
27 |
102 |
14.5 |
|
|
CHV4-5 |
470 |
213 |
238 |
141 |
158 |
27 |
102 |
15.5 |
|
|
CHV4-3E |
384 |
132 |
228 |
120 |
136 |
25.5 |
88 |
10.5 |
|
|
CHV4-4E |
408 |
150 |
238 |
141 |
158 |
27 |
102 |
13 |
|
|
CHV4-5E |
426 |
168 |
238 |
141 |
158 |
27 |
102 |
14.5 |
|
|
CHV4-6E |
444 |
186 |
238 |
141 |
158 |
27 |
102 |
15 |
|
|
CHV4-7E |
462 |
204 |
238 |
141 |
158 |
27 |
102 |
15.5 |
|
