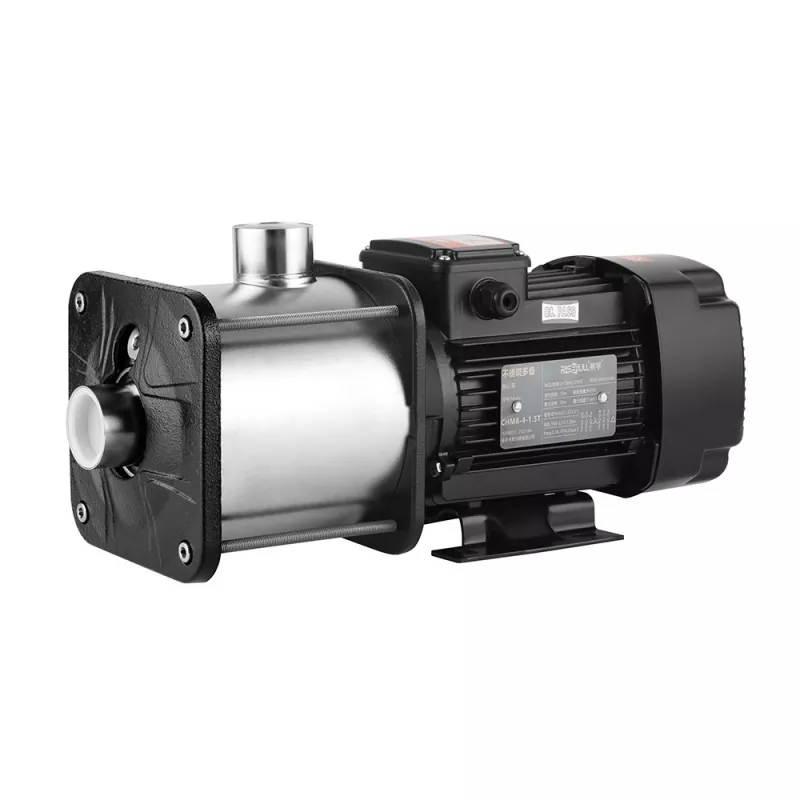

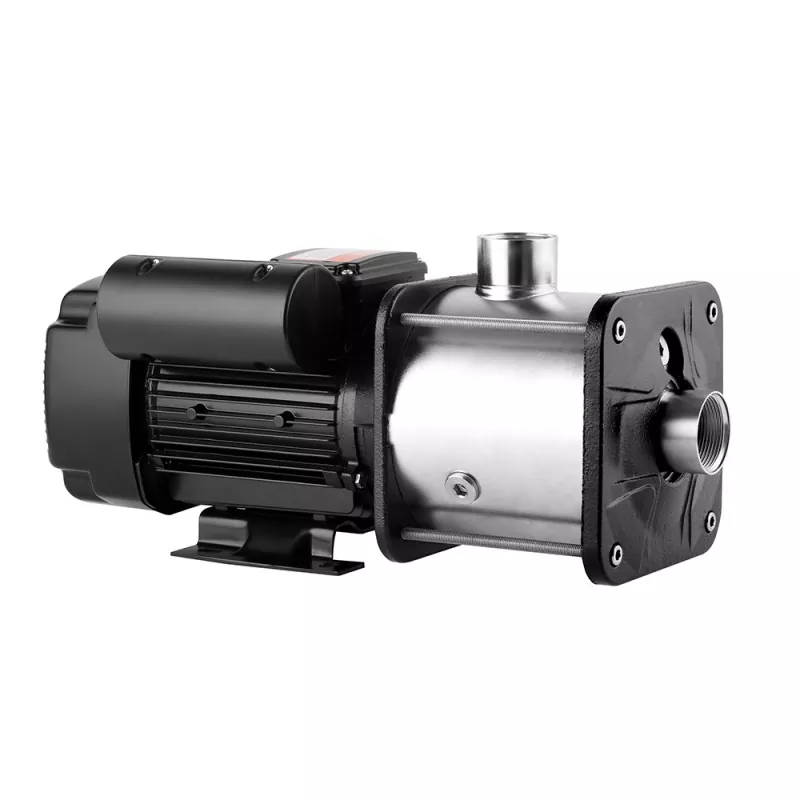

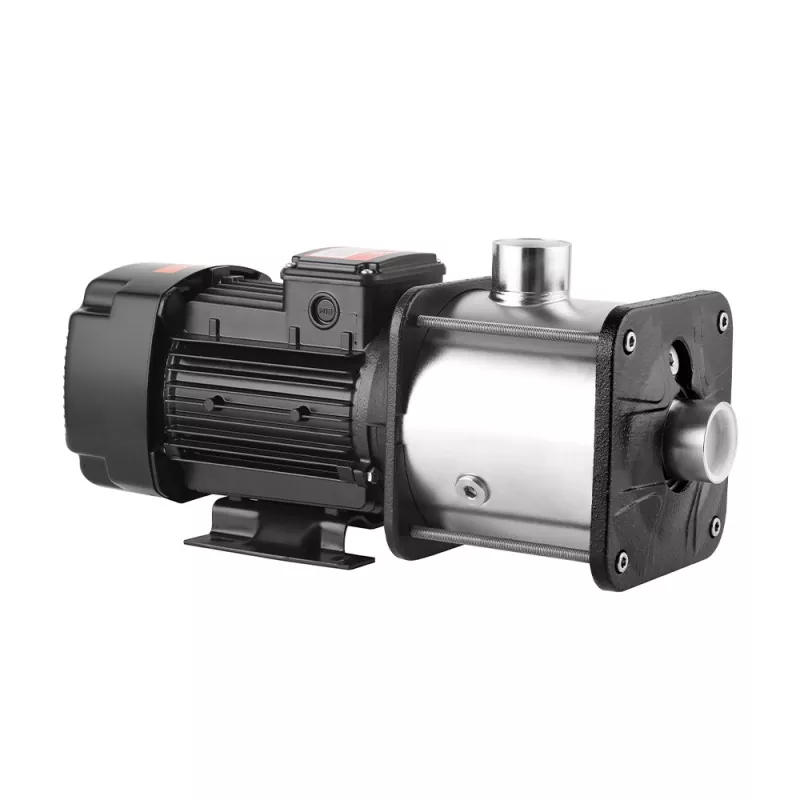

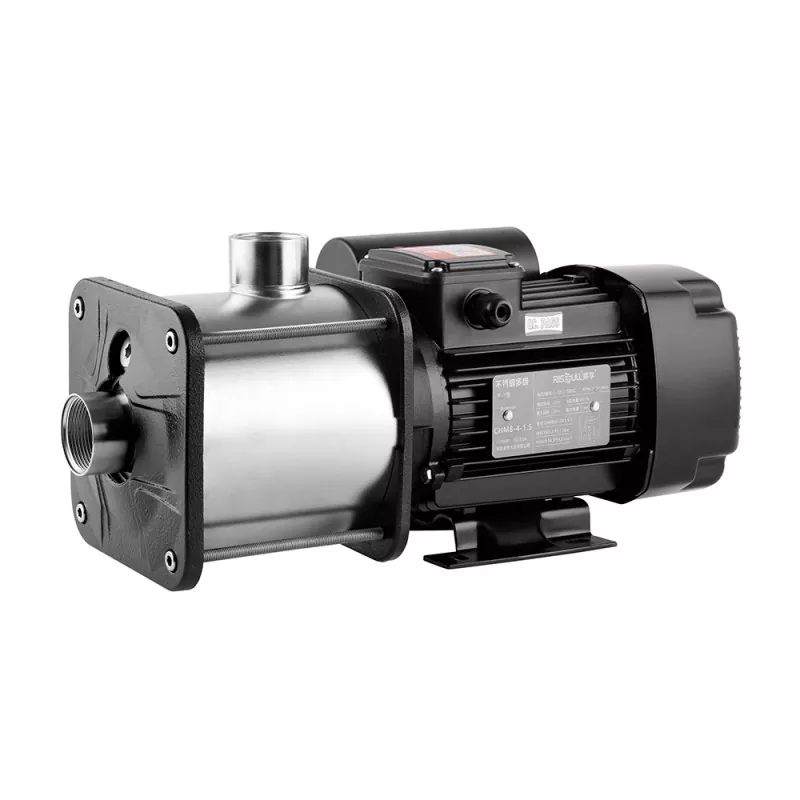

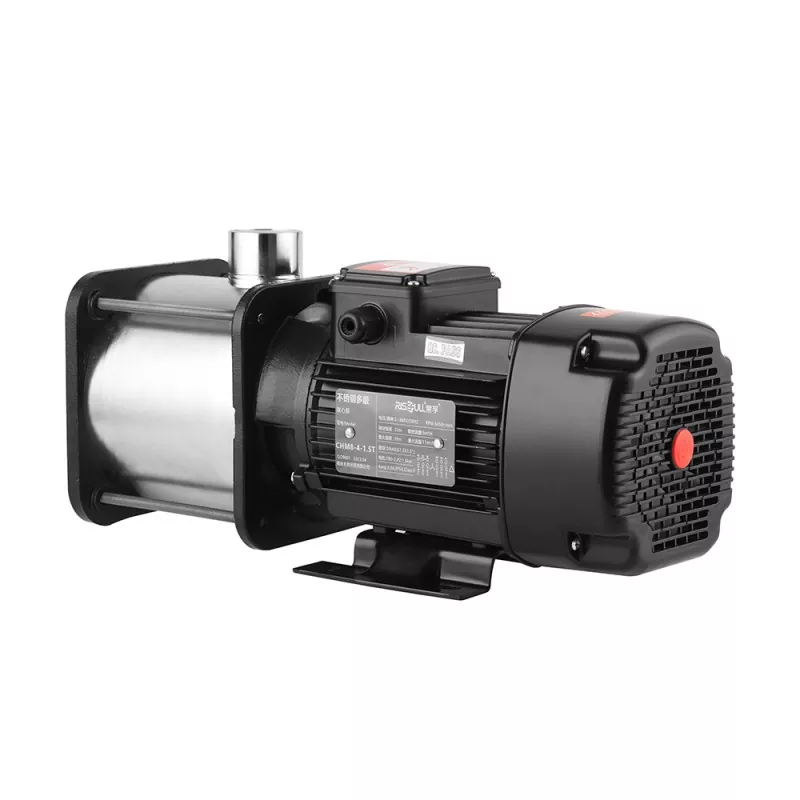

Multistage Water Pump

Model:CHM12-2/CHM12-3

RISEFULL® Multistage Water Pump have characteristic design & practical performance & competitive price, for more information on the Multistage Water Pump, please feel free to contact us.

Send Inquiry

Product Description

Made from high-quality stainless steel, the CHM-12 is exceptionally durable and resists corrosion even in harsh environments. Its powerful motor and state-of-the-art impeller design ensure maximum efficiency, delivering high flow rates and pressure while minimizing energy consumption.

Equipped with multiple stages, the Multistage Water Pump is capable of generating high pressure and has a wide range of applications, from water treatment to industrial processing. It can handle liquid temperatures ranging from -15 to 120°C, making it suitable for various industries such as chemical, pharmaceutical, and food processing.

The CHM-12’s compact design and easy-to-install features make it an ideal choice for both large and small operations. The pump is also super quiet, providing a comfortable working environment without disturbing other workers.

Multistage Water Pump is a relatively mature product on the market currently which is with compact structure and stable working, low operating noise, eiciency up to 44-70%. All water passing components are made of stainless steel AISI304 .It is widely used in

1. Air Conditioning Cooling system & HVAC system

2. Water Treatment: Water Cleaning and Water Filtering

3. Water supply system: Pipeline delivery and building booster

4. Fishery Industry and Agriculture: Aquaculture, Farm sprinkling irrigation &drip irrigation

Product Details

Multistage Water Pump

Performance Data

Model

Power

Max Flow

m³/h

Max Head

Rated Point

(Flow@Head)

Impeller

Qty

CHM12-2

1.2

17.5

12m³/h@19m

CHM12-3

1.8

12m³/h@26m

Working Condition

1. Liquid Temperature: -15~105°c

2. Maximum Ambient Temperature: +45°C

3. Maximum Pressure: 10 Bar

4. Medium Physical Properties:

● Clean water or similar water liquid(without fiber,suspends solid≤3% & diameter≤2mm)

● Antifreeze Liquid (Main component: glycol)

● Mild corrosive liquid (PH 5- 9)

● Seal rubber in pump is EPDM (it could not be usedto deliver the MINERAL OIL)

5. lf the altitude is higher than 1000 meters and the viscosity of the medium is greater than that of cleanwater, it is necessary to increase the margin of thewater pump to avoid overheating of the motor.

No.	Component	Material	No.	Component	Material
01	Screw	SUS201	21	Drop Guard	NBR
02	Drain Screw	AISI304	22	Screw	SUS201
03	O-ring	EPDM	23	Bracket	HT200
04	Pump Body Cover	HT200	24	Bearing
05	Pump Body	AISI304	25	Rotor	Welding Shaft with AISI304
06	Locknut	AISI304	26	Motor
07	Final Stage Location Sleeve	AISI304	27	Terminal Board	PBT
08	Inlet Diffuser	AISI304	28	Terminal Box Washer	NBR
09	Impeller	AISI304	29	Terminal Box	Aluminium
10	Tungsten Steel Shaft Sleeve	Tungsten Steel	30	Screw
11	Shaft Sleeve	AISI304	31	Screw
12	Support Diffuser	AISI304	32	Cable Fairlead	PP
13	Shaft Sleeve	AISI304	33	Bottom Support
14	Diffuser	AISI304	34	Screw
15	First Stage Location Sleeve	AISI304	35	Spring Washer
16	Oulet Diffuser	AISI304	36	Back Cover	HT200
17	Flat Gasket	AISI304	37	Fan
18	Mechanical Seal	Graphite +SIC	38	Fan Cover	PA6
19	O-ring	EPDM	39	Rubber Logo	Silicone
