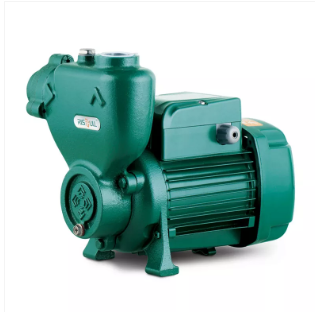

Self-priming Jet Pump

Model:J300/J550/J750

Risefull is a an innovative and professional water pump manufacturer and supplier in China. We have been specialized in electric water pump for many years. With years of experience in household water pump ,industrial water pump and pump accessories ,Risefull water pump can meet many applications .For the household pump ,we can cover many applications such as ,pipeline booster ,downward booster ,water tower filling ,shallow well pumping and deep well pump .For the industrial water pump ,we can supply centrifugal pump ,peripheral water pump,self-priming peripheral water pump ,high temperature water pump ,self-priming jet pump ,GD in line pump,stainless steel multistage centrifugal water pump .

Send Inquiry

Product Description

The self-priming feature means you won't have to spend time and energy filling the pump before use. The jet pump will automatically create the suction necessary to draw water from the source and move it to your desired location. This feature makes the Self-Priming Jet Pump a perfect choice for both residential and commercial use.

The Self-Priming Jet Pump is also designed for ease of operation and maintenance. The rust-resistant steel construction ensures longevity. Additionally, the compact and lightweight design makes installation easy, and the pump's portability allows for convenient transport.

The following is an introduction of J Series .It is for shallow well pumping, self-priming JET pump which is used to pump water from the well with the depth within 9 meters. Hope to help you better understand Risefull domestic water pump . Welcome new and old customers to continue to cooperate with us to create a better future together

Product Specification:

Product Name:	Shallow Well Pumping
Power	0.5HP/0.75/HP/1HP
Max Flow	45L/min 60L/min 70L/min
Max Head	32M 36M 40M
Inlet/outlet	1”X1”
Pump Body	Cast Iron
Valve	Inner Valve
Bracket	Cast Iron
Bracket Cover	Cast Iron with Elector-coating
Diffuser	Cast Iron with Elector-coating
Shaft	S.S Shaft
Impeller	Brass Impeller
Motor	Cooper wire or Aluminium,
Color	Powder Color Coating
MOQ:	100pcs
Sample Time:	Within 7 days
Production Time:	35-40 days after order confirmation
Certificate	CE

Product Details:

Working Condition

● Clean liquid without suspend solids ,non aggressive

● Continuous Service :S1

● Maximum Pressure:10 Bar

● Liquid Temperature:3℃~90℃

● Ambient Temperature:<40℃

● Insulation:B

● Protection:IP44

● Solid Diameter:≤2mm

Performance Data

Item	Power		Max Flow	Max Head	Rated Point	Flow Sug.	Floor Sug
Item	kW	HP	Max Flow	Max Head	Rated Point	Flow Sug.	Floor Sug
J300	0.37	1/2	45L/min	32M	20M@25L	x1.5	3 Floor
J550	0.55	3/4	60L/min	36M	26M@40L	X2	4 Floor
J750	0.75	1	70L/min	40M	28M@40L	X2.5	5 Floor
